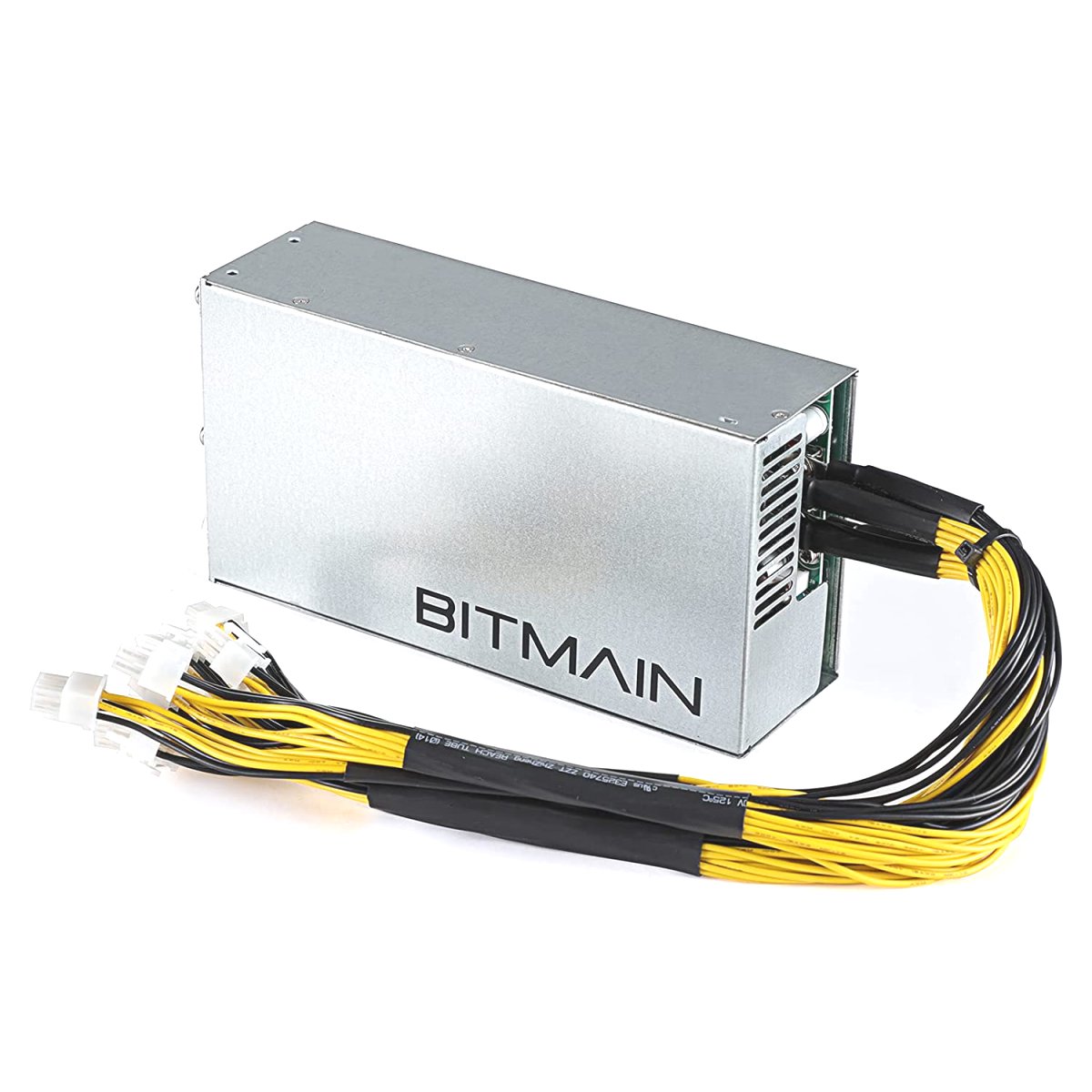

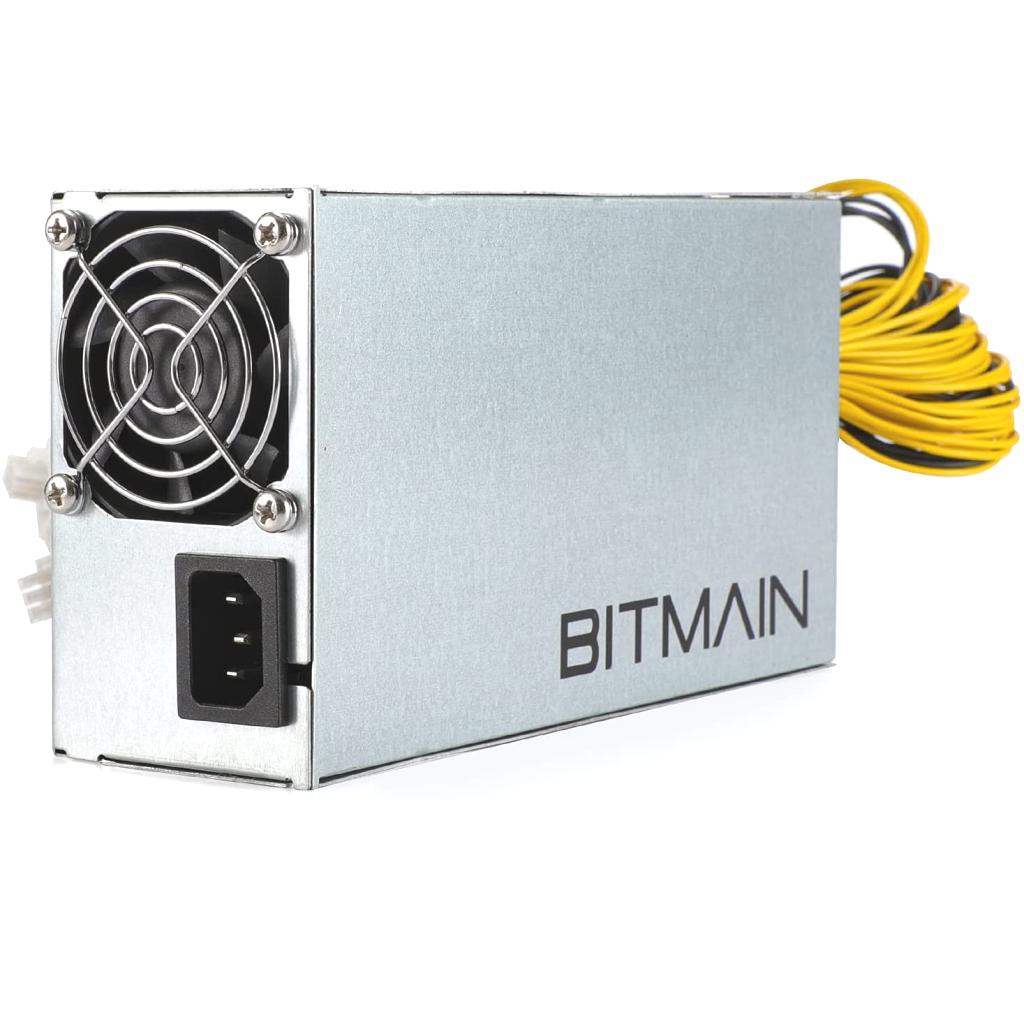

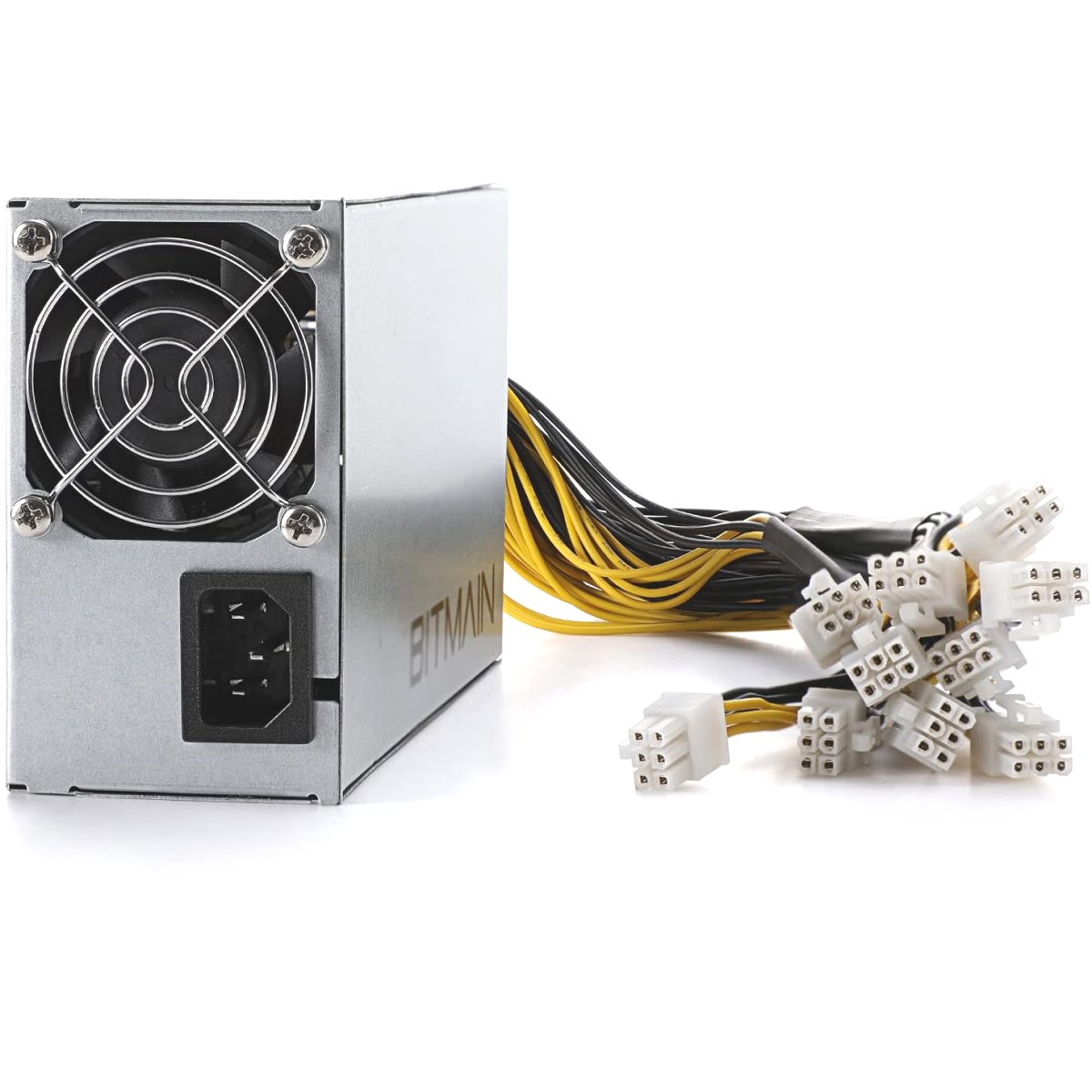

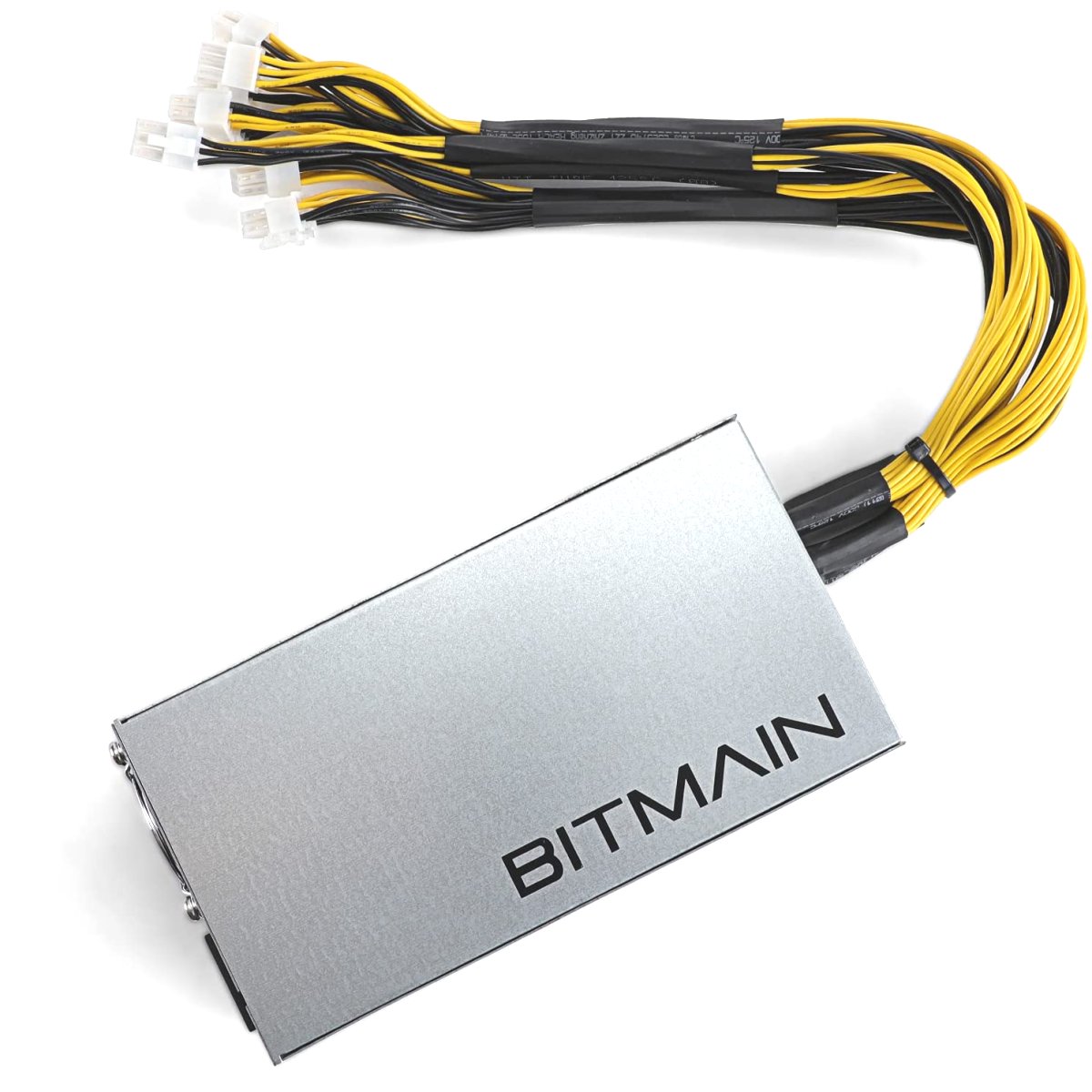

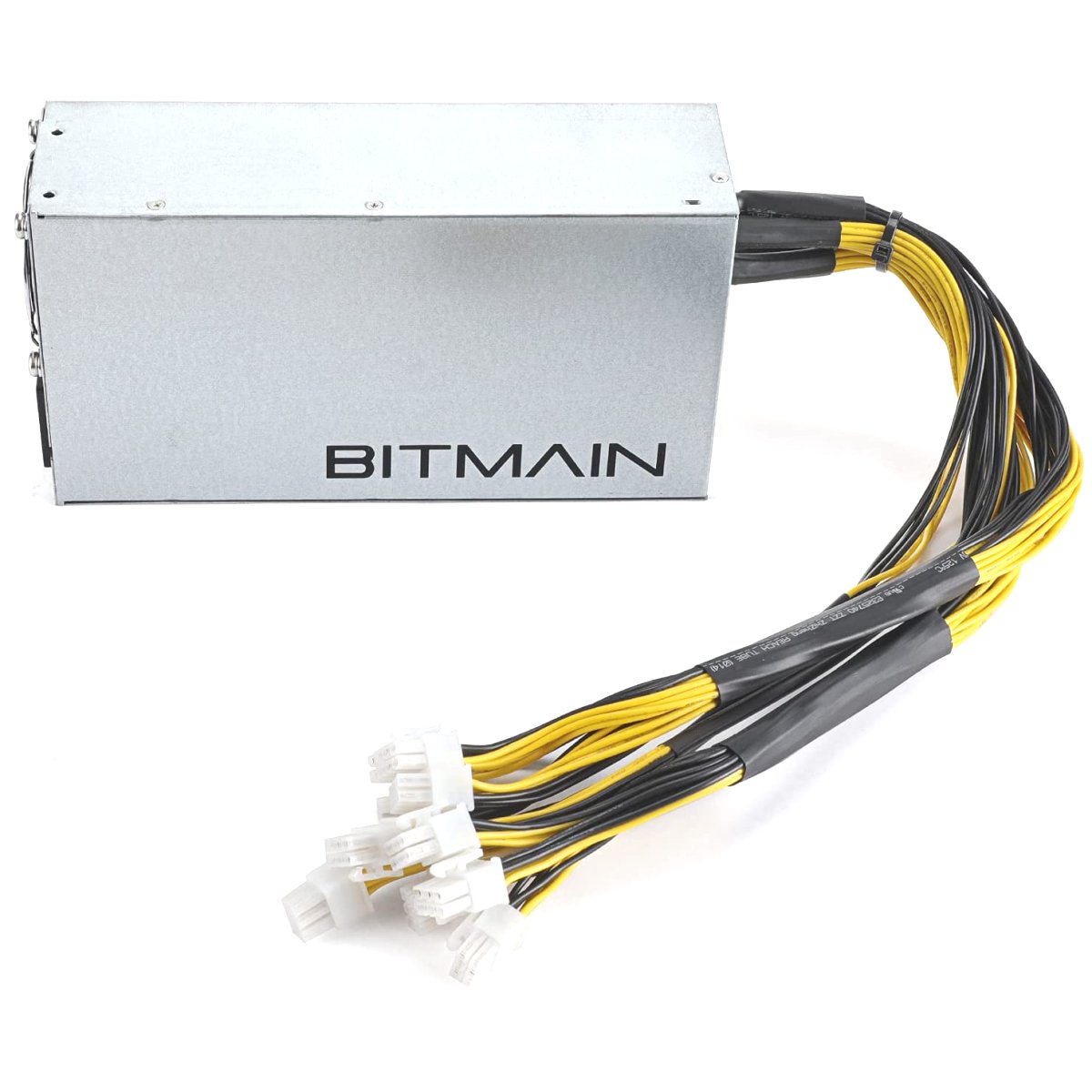

BITMAIN APW7 1800W Mining PSU Netzteil
Artikelnummer: BS-BITMAIN-APW7
Produktdetails
| Kühlung | Aktiv |
| Maximale Leistung | 1800 W |
| Modular | Nein |
| Anschlüsse | 6 Pin PCI Express |
| Farbe | Silber |
| Produktart | Leistungsmodul |
| Spannungskompatibilität | 12V |
| Marke | BITMAIN |
| Formfaktor | ATX |
| EAN | Nicht zutreffend |
| Modellnummer | APW7 |
Artikelbeschreibung
Details:
- Effizienz: 95%
- 10x PCI-Express 12V 6-POL Anschluss für ASIC-Miner oder GPU
Output:
DC Voltage: 12.0 V
Rated Current (200 - 240 V input): 150 A
Rated Power (200 - 240 V input): 1800 W
Rated Current (100 - 140 V input): 67 A
Rated Power (100-140 V input): 800 W
Ripple & Noise: < 1%
Voltage Regulation: < 2%
Source Regulation: < 1%
Load Regulation: < 1%
Setup, Rise Time: < 2 S
Power off Protection Trip Time:> 10 mS
Input:
Voltage Range: 100-140 V A/C / 200-240 V A/C
Frequency Range: 50 - 60 Hz
Power Factor: > 0.99 (full load)
Leakage Current: < 1.5 mA 220 V 50 Hz)
Low-voltage Input: 80 - 89 V A/C
Protection:
Output Short Circuit: Yes
Output Overcurrent: 100 - 200 A
Overheat Protection: Yes
Environment:
Operating Temperature: -20°C - 50°C
Operating Humidity: 20% - 90% relative humidity (non-condensing)
Altitude: < 2000 m
Structure:
Dimensions: 220 x 108 x 62 mm
Weight: 2.0 KG
Cooling:
Fan: Forced-air cooling
Noise: 43 dB
